Dip Brazing of an Aluminum Fin Field for the Military Industry
click on the image to enlarge
Request a Quote

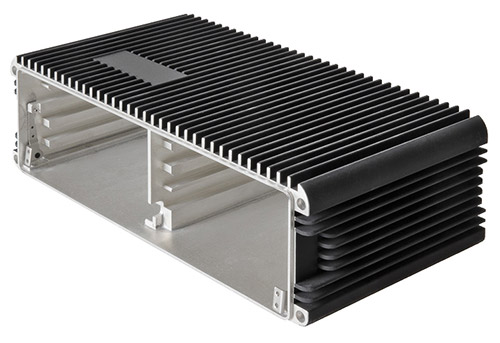

This aluminum chassis was designed for use in a military application, and highlights many of our manufacturing capabilities. The chassis was machined utilizing out precision CNC milling capabilities, and is composed 0.5” thick, 6061-T6 aluminum. After machining, chassis components were dip brazed, per AWS C3.7 Class B standards. The final dimensions were 11” in length, 6” in width, and 3” in height, it also met tolerances of ±0.001”. Finishing required multiple steps including chromate conversion coating per Mil-spec MIL-C-5541. The application of a primer coat per Mil-spec MIL-P-53022 Type II, and paint application per Mil-spec MIL-DTL-64159 CARC. Meeting all of these standards is just a small part of the value added services that we provide. Our facility is ISO 9001:2008 certified, with a culture of quality.
To learn more about this project, or the processes used to manufacture it, see the table below or contact us directly.

Dip Brazing of an Aluminum Chassis – Project Details

Product Description

This chassis is used as the supporting structure for a military application.

Capabilities Applied/Processes

CNC Milling
Dip Brazing

Chromate Conversion Coating

Overall Part Dimensions

Length: 11″
Width: 6″
Height: 3″

Tightest Tolerances


Material Used

6061-T6 Aluminum
Thickness: 0.5″

Material Finish

Chromate per MIL-DTL-5541
Primed per MIL-P-53022
Color: Gold
Painted per MIL-DTL-64159
Color: Clear
Surface Roughness: 32 RMS

In process testing/inspection performed

Dimensional Inspection, Visual Inspection, & CMM Inspection

Industry for Use



Less than 100 annually

Standards Met

Customer Specifications, 2D CAD Drawing
ISO 9001
Dip Brazing per AWS C3.7 Class B
Chromate Conversion Coat per MIL-C-5541
Prime per MIL-P-53022 Type II
Paint per MIL-DTL-64159 CARC
